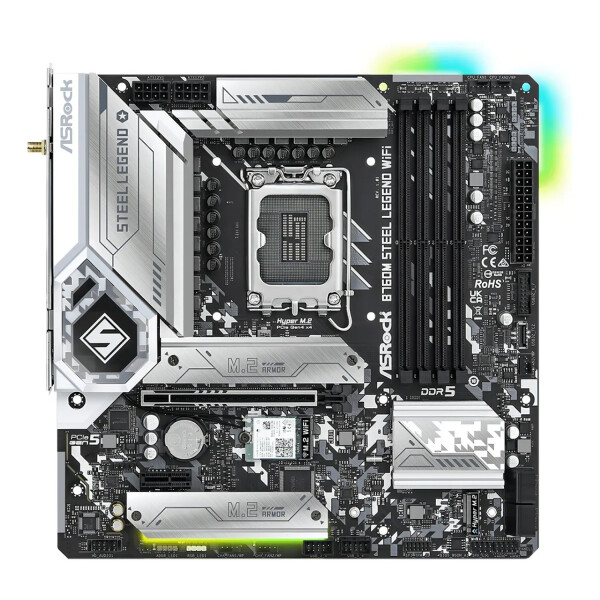

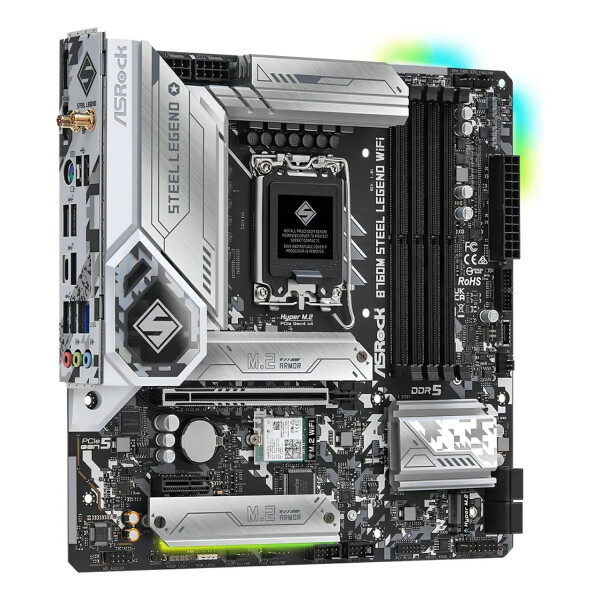

Placa Madre Asrock B760M Steel Legend Wifi Intel

- CPU

· Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

· Supports Intel® Hybrid Technology

· Supports Intel® Turbo Boost Max 3.0 Technology

· Supports Intel® Thermal Velocity Boost (TVB)

· Supports Intel® Adaptive Boost Technology (ABT)

- Chipset Intel B760

- Memoria

· Dual Channel DDR5 Memory Technology

· 4 x DDR5 DIMM Slots

· Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)

· Max. capacity of system memory: 192GB

· Supports Intel® Extreme Memory Profile (XMP) 3.0

- Gráficos

· Intel® Xe Graphics Architecture (Gen 12)

· 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

· 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

· 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

·Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated

- Audio

· 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- LAN

· 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Chipset:

· 1 x PCIe 4.0 x1 Slot (PCIE2)*

· 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

· 15µ Gold Contact in VGA PCIe Slot (PCIE1)

·Supports NVMe SSD as boot disks

- Conectores

· 1 x eDP Signal Connector

· 1 x SPI TPM Header

· 1 x Chassis Intrusion and Speaker Header

· 1 x RGB LED Header*

· 3 x Addressable LED Headers**

· 1 x CPU Fan Connector (4-pin)***

· 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

· 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

· 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

· 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

· 1 x Front Panel Audio Connector

· 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

· 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

· 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

· CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

- Socket: S1700

- Almacenamiento:

· 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- Chipset:

· 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

· 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

· 4 x SATA3 6.0 Gb/s Connectors

- Garantía: 12 meses
